KONİK PERVANE TUTYALARI YEDEK | |||||||||||

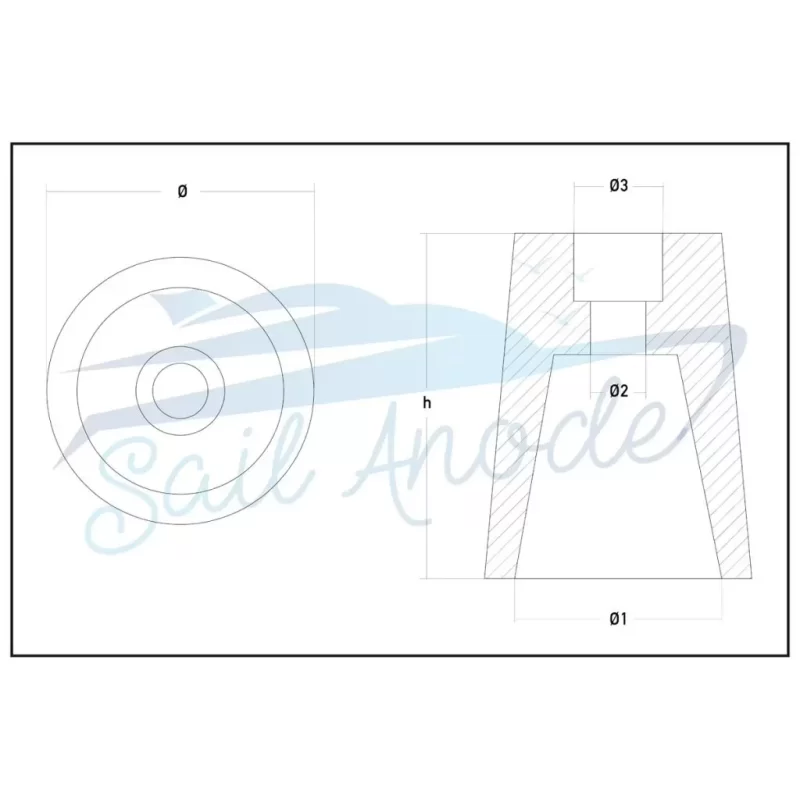

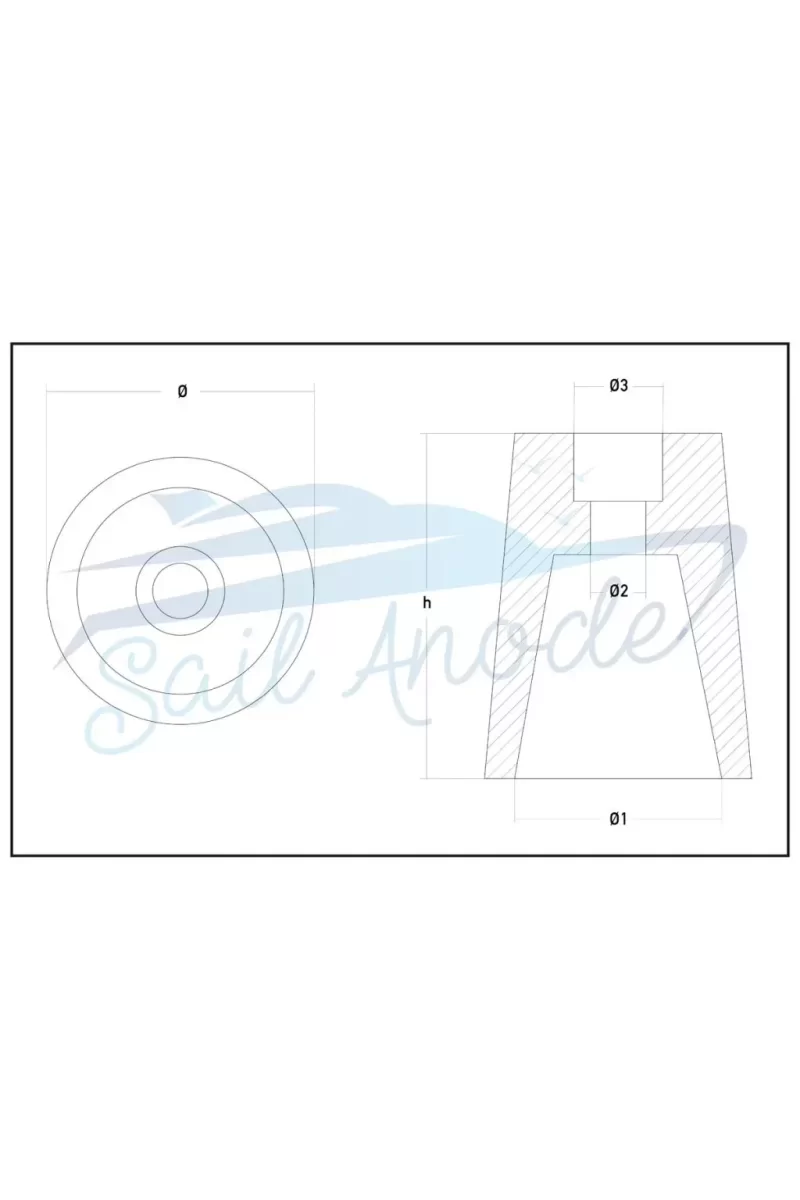

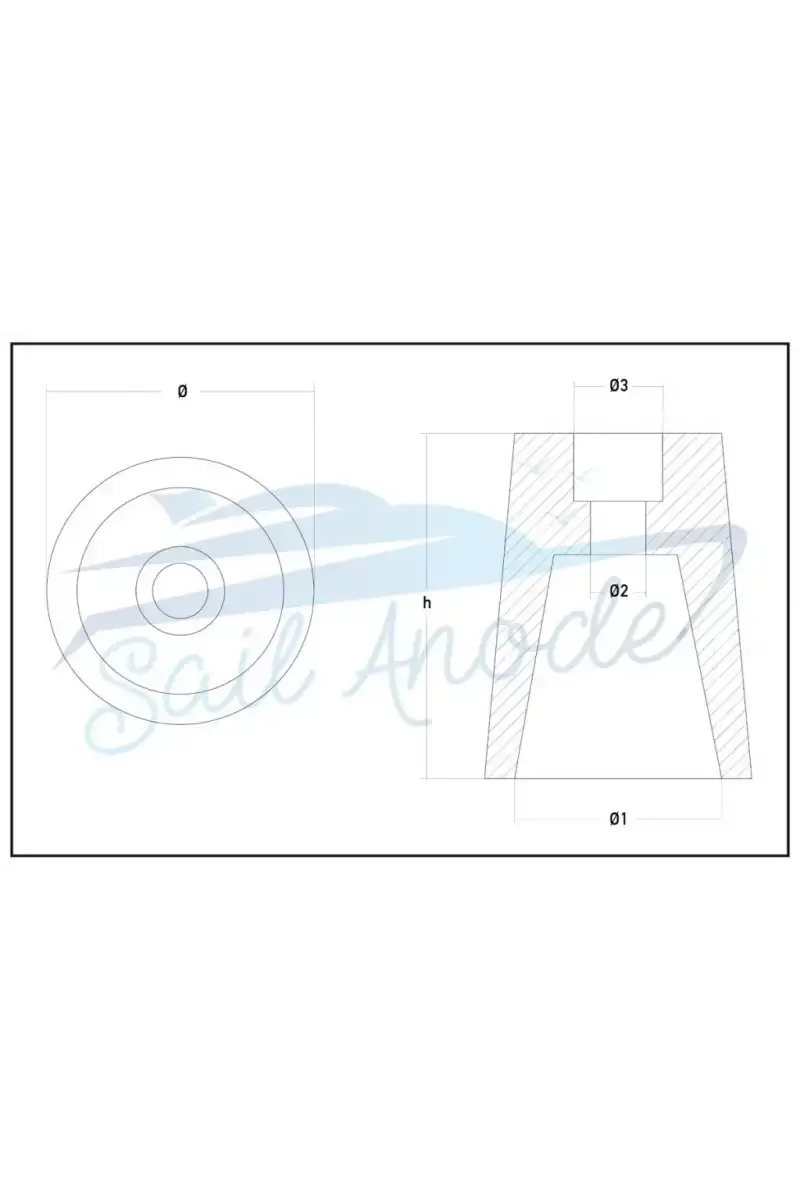

Ürün Adı | Kodu | kg | lbs | Hammadde | Birim | Ø Shaft | h | Ø | Ø1 | Ø2 | Ø3 |
PROP C. 22-25 | SAPC2225 | 0,140 | 0,30 | ZN | mm | 22 – 25 mm | 39 | 33 | 25 | 6,5 | 11 |
inch | 1,54” | 1,30” | 0,98” | 0,26” | 0,43” | ||||||
PROP C. 30 | SAPC30 | 0,280 | 0,62 | ZN | mm | 30 mm | 53 | 42 | 31 | 8,5 | 13,5 |
inch | 2,09” | 1,65” | 1,22” | 0,33” | 0,53” | ||||||
PROP C. 35 | SAPC35 | 0,390 | 0,86 | ZN | mm | 35 mm | 62 | 46 | 37 | 8,5 | 13,5 |
inch | 2,44” | 1,81” | 1,46” | 0,33” | 0,53” | ||||||
PROP C. 40 | SAPC40 | 0,510 | 1,11 | ZN | mm | 40 mm | 68 | 51 | 42 | 8,5 | 16 |
inch | 2,68” | 2,01” | 1,65” | 0,33” | 0,63” | ||||||
PROP C. 45 | SAPC45 | 0,830 | 1,83 | ZN | mm | 45 mm | 76 | 61 | 48 | 11 | 22 |
inch | 2,99” | 2,40” | 1,89” | 0,43” | 0,86” | ||||||
PROP C. 50 | SAPC50 | 1,140 | 2,51 | ZN | mm | 50 mm | 84 | 72 | 57 | 11 | 22 |
inch | 3,31” | 2,83” | 2,24” | 0,43” | 0,86” | ||||||
PROP C. 55 | SAPC55 | 1,110 | 2,45 | ZN | mm | 55 mm | 86 | 75 | 65 | 11 | 29 |
inch | 3,39” | 2,95” | 2,56” | 0,43” | 1,14” | ||||||
PROP C. 60 | SAPC60 | 1,830 | 4,03 | ZN | mm | 60 mm | 98 | 83 | 71 | 11 | 22 |
inch | 3,86” | 3,27” | 2,80” | 0,43” | 1,14” | ||||||
PROP C. 70-100 | SAPC7010 | 2,220 | 4,88 | ZN | mm | 70-100 mm | 96 | 97 | 84 | 11 | 22 |
inch | 3,78” | 3,82” | 3,31” | 0,43” | 0,86” | ||||||
PROP C. 110 | SAPC110 | 7,650 | 16,87 | ZN | mm | 110 mm | 134 | 160 | 130 | 15 | 24 |
inch | 5,28” | 6,30” | 5,12” | 0,59” | 0,94” | ||||||
KONİK PERVANE TUTYALARI TAKIM | |||||||||||
Ürün İsmi | Kodu | kg | lbs | Hammadde | Birim | Ø Shaft | h | h1 | Ø | c | m |
PROP C. 22-25 | SAPC2225/1 | 0,300 | 0,66 | ZN | mm | 22 – 25 mm | 20 | 18 | 37 | 30 | 16 x 1,5 mm |
inch | 0,79” | 0,71” | 1,46” | 1,18” | |||||||
PROP C. 30 | SAPC30/1 | 0,530 | 1,16 | ZN | mm | 30 mm | 22 | 21 | 45 | 32 | 20 x 1,5 mm |
inch | 0,87” | 0,83” | 1,77” | 1,26” | |||||||
PROP C. 35 | SAPC35/1 | 0,730 | 1,60 | ZN | mm | 35 mm | 24 | 24 | 50 | 36 | 24 x 2 mm |
inch | 0,94” | 0,94” | 1,97” | 1,42” | |||||||
PROP C. 40 | SAPC40/1 | 1,020 | 2,25 | ZN | mm | 40 mm | 27 | 27 | 55 | 41 | 24 x 2 mm |
inch | 1,06” | 1,06” | 2,17” | 1,61” | |||||||
PROP C. 45 | SAPC45/1 | 1,563 | 3,44 | ZN | mm | 45 mm | 30 | 30 | 65 | 50 | 33 x 2 mm |
inch | 1,18” | 1,18” | 2,56” | 1,97” | |||||||
PROP C. 50 | SAPC50/1 | 2,150 | 4,74 | ZN | mm | 50 mm | 30 | 31 | 74 | 54 | 36 x 3 mm |
inch | 1,18” | 1,22” | 2,91” | 2,13” | |||||||
PROP C. 55 | SAPC55/1 | 2,730 | 6,04 | ZN | mm | 55 mm | 40 | 41 | 79 | 63 | 40 x 3 mm |
inch | 1,57” | 1,61” | 3,11” | 2,48” | |||||||
PROP C. 60 | SAPC60/1 | 3,740 | 8,26 | ZN | mm | 60 mm | 41 | 41 | 90 | 63 | 45 x 3 mm |
inch | 1,61” | 1,61” | 3,54” | 2,48” | |||||||
PROP C. 70-100 | SAPC7010/1 | 6,864 | 12,94 | ZN | mm | 70-100 mm | 46 | 46 | 100 | 75 | 50 x 3 mm |
inch | 1,81” | 1,81” | 3,94” | 2,95” | |||||||
